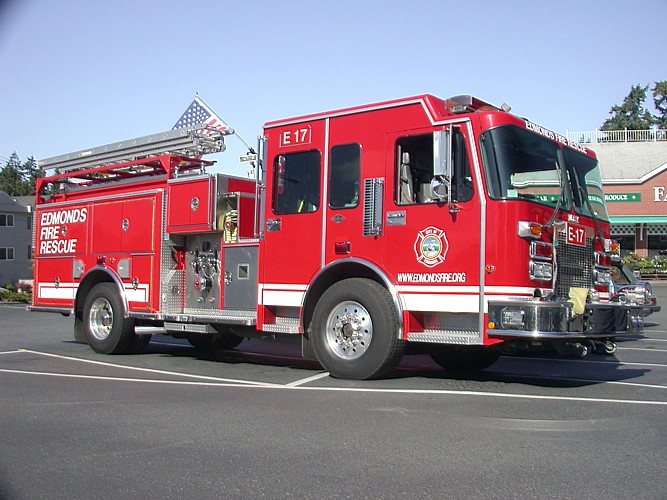

Edmonds Fire Department

Engine 17

Shop#

1998 Spartan/Darley

1500gpm    500gal

Dimensions

Height:

Length:

Width:

Cab:  Spartan Gladiator

Engine:  Detroit Diesel Series 60  430hp

Transmission:  Allison HD 4060P 5-speed

The aluminum bodies feature a transverse compartment with a full width slide-out tray under the crosslays built into the pump compartment module as well as four left side and five right side compartmets. A booster reel which holds 200' of 1" hose is mounted over the operator's control panel. The rear of the truck is equipped with a 5" suction inlet as well as a 4" discharge and two (2) 2.5" discharges. A 5" front inlet suction is also included on the right side of the front bumper. The trucks also carry ladders on hydraulic ladder racks mounted on the right sides of the vehicles. Other special features on these trucks include Detroit Diesel pressure governors installed on the control panels.
